YPL Low Pressure Line Filter

Short Description:

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)
Operating pressure (max): 1.6MPa
Operating temperature: -25℃~110℃
Indicating pressure drop: 0. 2MPa
By-pass valve unlocking pressure: 0.3MPa

Send email to us

Product Detail

Product Tags

description

YPL low-pressure filter is installed in the low-pressure or return oil pipeline of the hydraulic system. It can be directly inserted from the top of the oil tank or connected to an external pipeline to filter out solid particles and colloidal substances in the working medium, effectively controlling the pollution level of the working medium.

The filter element is equipped with a bypass valve and a pressure indicator can be installed as needed.

Filter medium adopts inorganic fiber glass, filter paper and stainless steel wire mesh.

Filter vessel is cast in aluminum and has a nice looking figure.

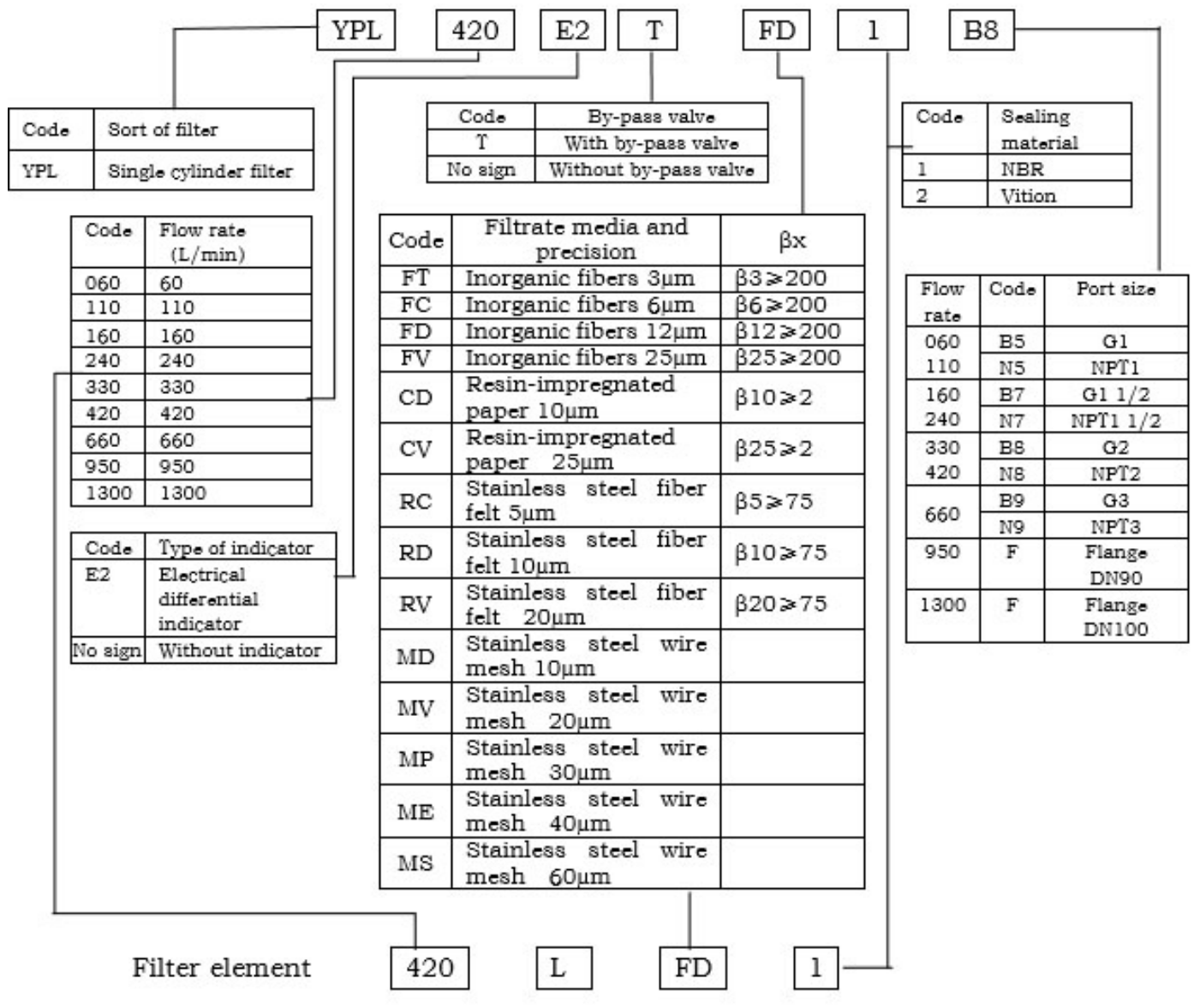

Odering Information

1) CLEANING FILTER ELEMENT COLLAPSE PRESSURE UNDER RATING FLOW RATES (Unit:1X105Pa
Medium parameters:30cst 0.86㎏/dm3)

Code	Housing	Filter element
Code	Housing	FT	FC	FD	FV	CD	CV	MD	MV
YPL060…	0.18	0.56	0.48	0.39	0.35	0.49	0.41	0.72	0.63
YPL110…	0.45	0.56	0.48	0.37	0.33	0.46	0.39	0.69	0.61
YPL160…	0.21	0.58	0.50	0.40	0.36	0.51	0.43	0.75	0.65
YPL240…	0.48	0.59	0.52	0.41	0.37	0.53	0.42	0.78	0.68
YPL300…	0.25	0.61	0.56	0.43	0.38	0.57	0.45	0.81	0.70
YPL420…	0.43	0.58	0.52	0.41	0.36	0.53	0.42	0.78	0.68
YPL660…	0.23	0.61	0.56	0.43	0.38	0.57	0.43	0.82	0.70
YPL950…	0.22	0.60	0.55	0.42	0.36	0.55	0.43	0.80	0.69
YPL1300…	0.25	0.63	0.58	0.45	0.40	0.58	0.46	0.83	0.71

2) DIMENSIONAL LAYOUT

Type	A	H	H1	H2	H3	D	D1	b	B	b1	b2	L1	L2	C	Weight（Kg）
YPL060…	G1 NPT1	260	165.5	30.5	94.5	Φ100	Φ72	90	Φ5.5						1.1
YPL110…	G1 NPT1	328	233	30.5	163	Φ100	Φ72	90	Φ5.5						1.3
YPL160…	G1 1/2 NPT1 1/2	304	209	37	123	Φ135	Φ98	120	Φ6.5						2.0
YPL240…	G1 1/2 NPT1 1/2	364	268	37	182	Φ135	Φ98	120	Φ6.5						2.5
YPL330…	G2 NPT2	366	271	60	141	Φ170	Φ128	152	Φ9						6.6
YPL420…	G2 NPT2	450	355	60	225	Φ170	Φ128	152	Φ9						8.8
YPL660…	G3 NPT3	506	411	80	246	Φ220	Φ167	196	Φ14						15.3
YPL950…	Φ90	544	449	92	254	Φ290	Φ200	225	Φ18	164	168	70	120	M16	28.3
YPL1300…	Φ100	668	573	118	335	Φ290	Φ200	225	Φ18	164	168	78	130	M16	32.6
