description
The SRLF dual cartridge return oil pipeline filter consists of two single tube filters and a two position six way directional valve.
It has a simple structure, is easy to use, and is equipped with a bypass valve and a filter element pollution blockage transmitter to ensure system safety.
During the working process, if the filter element of the single cylinder filter is clogged to a certain extent and needs to be cleaned or replaced, the main engine should be stopped to replace the filter element. This not only wastes time but also cannot meet the continuous working needs of the main engine. The dual cylinder filter effectively solves this defect of the single cylinder filter, and the filter element can be cleaned or replaced without stopping the machine to ensure the normal continuous operation of the main engine.
Feature:
When a filter element becomes clogged and needs to be replaced, there is no need to stop the main engine. Simply open the pressure balance valve and turn the directional valve, and the other filter can start working. Then replace the clogged filter element.
This filter is widely used in hydraulic systems such as heavy machinery, mining machinery, metallurgical machinery, etc
|
Model Number |
Flowrate L/min |
Filtration accuracy(μm) |
Dia(mm) |
Weight(Kg) |
Filter Cartridge Model Number |
|
SRLF-60×*P |
60 |
1
|
25 |
13.2 |
SFX-60×* |
|
SRLF-110×*P |
110 |
13.7 |
SFX-110×* |
||
|
SRLF-160×*P |
160 |
40 |
29.5 |
SFX-160×* |
|
|
SRLF-240×*P |
240 |
32.0 |
SFX-240×* |
||
|
SRLF-330×*P |
330 |
50 |
52.5 |
SFX-330×* |
|
|
SRLF-500×*P |
500 |
58.5 |
SFX-500×* |
||
|
SRLF-660×*P |
660 |
80 |
77.0 |
SFX-660×* |
|
|
SRLF-850×*P |
850 |
81.0 |
SFX-850×* |
||
|
SRLF-950×*P |
950 |
100 |
112 |
SFX-950×* |
|
|
SRLF-1300×*P |
1300 |
121 |
SFX-1300×* |
||

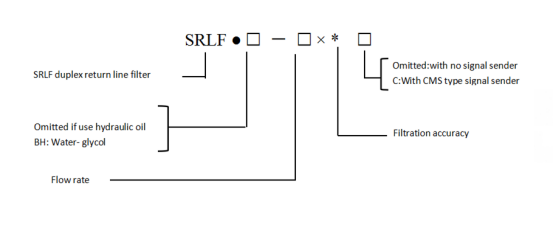

| Note: * is the filtration accuracy. If the medium used is water ethylene glycol, the pressure used is 1.6Mpa, the nominal flow rate is 160L/min, the accuracy is 10 μ m, and it is equipped with a CMS transmitter. The filter model is SRLF · BH-160X10P, and the filter element model is SFX · BH-160X10. | |||||
Model Numbers
SRLF-H60×3P SRLF-H60×5P SRLF-H60×10P
SRLF-H60×20P SRLF-H60×30P
SRLF-H110×3P SRLF-H110×5P SRLF-H110×10P
SRLF-H110×20P SRLF-H110×30P
SRLF-H160×3P SRLF-H160×5P SRLF-H160×10P
SRLF-H160×20P SRLF-H160×30P
SRLF-H240×3P SRLF-H240×5P SRLF-H240×10P
SRLF-H240×20P SRLF-H240×30P
SRLF-H330×3P SRLF-H330×5P SRLF-H330×10P
SRLF-H330×20P SRLF-H330×30P
SRLF-H500×3P SRLF-H500×5P SRLF-H500×10P
SRLF-H500×20P SRLF-H500×30P
SRLF-H660×3P SRLF-H660×5P SRLF-H660×10P
SRLF-H660×20P SRLF-H660×30P
SRLF-H850×3P SRLF-H850×5P SRLF-H850×10P
SRLF-H850×20P SRLF-H850×30P
SRLF-H950×3P SRLF-H950×5P SRLF-H950×10P
SRLF-H950×20P SRLF-H950×30P
SRLF-H1300×3P SRLF-H1300×5P SRLF-H1300×10P
SRLF-H1300×20P SRLF-H1300×30P
SRLF.BH-H60×3P SRLF.BH-H60×5P SRLF.BH-H60×10P
SRLF.BH-H60×20P SRLF.BH-H60×30P
SRLF.BH-H110×3P SRLF.BH-H110×5P SRLF.BH-H110×10P
SRLF.BH-H110×20P SRLF.BH-H110×30P
SRLF.BH-H160×3P SRLF.BH-H160×5P SRLF.BH-H160×10P
SRLF.BH-H160×20P SRLF-H160×30P
SRLF.BH-H240×3P SRLF.BH-H240×5P SRLF.BH-H240×10P
SRLF.BH-H240×20P SRLF.BH-H240×30P
SRLF.BH-H330×3P SRLF.BH-H330×5P SRLF.BH-H330×10P
SRLF.BH-H330×20P SRLF.BH-H330×30P
SRLF.BH-H500×3P SRLF.BH-H500×5P SRLF.BH-H500×10P
SRLF.BH-H500×20P SRLF.BH-H500×30P
SRLF.BH-H660×3P SRLF.BH-H660×5P SRLF.BH-H660×10P
SRLF.BH-H660×20P SRLF.BH-H660×30P
SRLF.BH-H850×3P SRLF.BH-H850×5P SRLF.BH-H850×10P
SRLF.BH-H850×20P SRLF.BH-H850×30P
SRLF.BH-H950×3P SRLF.BH-H950×5P SRLF.BH-H950×10P
SRLF.BH-H950×20P SRLF.BH-H950×30P
SRLF.BH-H1300×3P SRLF.BH-H1300×5P SRLF.BH-H1300×10P
SRLF.BH-H1300×20P SRLF.BH-H1300×30P
