description
This series of low pressure filters are mainly used in the fuel supply system of aviation system testers and engine test benches to filter out solid particles and colloidal substances in the fuel, effectively controlling the cleanliness of the working medium.
Among them, RYLA-16, RYLA-22, RYLA-32, RYLA-40, RYLA-50, and RYLA-65 can be directly used in hydraulic systems.
The RYLA series filter is an improvement on the RYL series, and its filtration performance is consistent with the RYL series filter. It is particularly suitable for occasions where the fuel system requires high cleanliness and the filter element is cleaned frequently. When cleaning, open the drain valve to discharge contaminated oil, remove the compression block, and take out the filter element to complete the cleaning of the filter element, and effectively isolate the oil before and after filtering. The installation position of the pressure difference alarm device is also moved from the original top to the side.

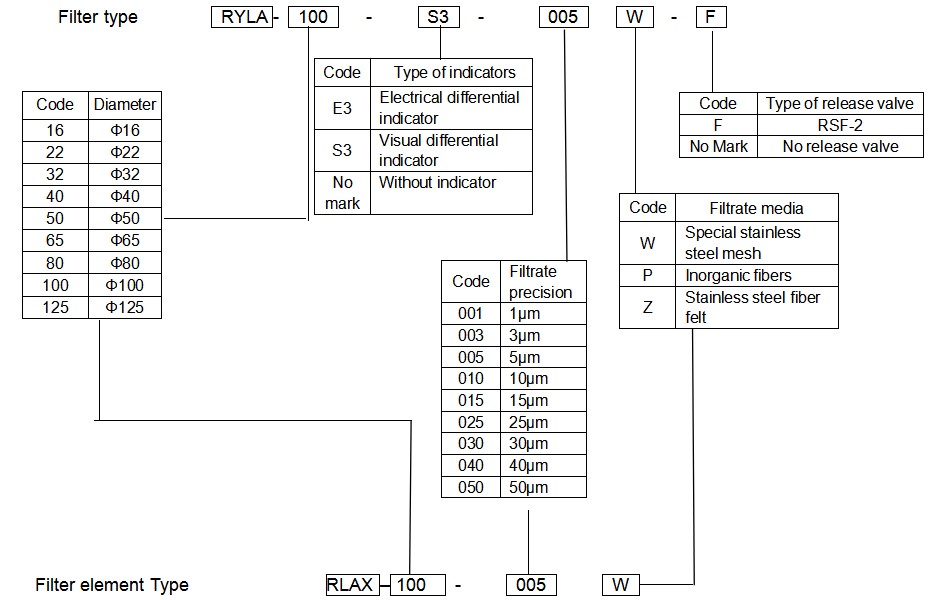

Odering Information
DIMENSIONAL LAYOUT
| Type RYLA |
Flow rates L/min |
Diameter d |
H | H0 | L | E | Screw thread：MFlange size A×B×C×D | Structure | Notes |
| 16 | 100 | Φ16 | 283 | 252 | 208 | Φ102 | M27×1.5 | Picture 1 | Can be selected from the signal device, bypass valve and release valve according to request |
| 22 | 150 | Φ22 | 288 | 257 | 208 | Φ116 | M33×2 | ||
| 32 | 200 | Φ30 | 288 | 257 | 208 | Φ116 | M45×2 | ||
| 40 | 400 | Φ40 | 342 | 267 | 220 | Φ116 | Φ90×Φ110×Φ150×(4-Φ18) | Picture 2 | |
| 50 | 600 | Φ50 | 512 | 429 | 234 | Φ130 | Φ102×Φ125×Φ165×(4-Φ18) | ||
| 65 | 800 | Φ65 | 576 | 484 | 287 | Φ170 | Φ118×Φ145×Φ185×(4-Φ18) | ||
| 80 | 1200 | Φ80 | 597 | 487 | 394 | Φ250 | Φ138×Φ160×Φ200×(8-Φ18) | Picture 3 | |
| 100 | 1800 | Φ100 | 587 | 477 | 394 | Φ260 | Φ158×Φ180×Φ220×(8-Φ18) | ||
| 125 | 2300 | Φ125 | 627 | 487 | 394 | Φ273 | Φ188×Φ210×Φ250×(8-Φ18) |
