RYL Flange Connection Fuel Filter Housing

Short Description:

Operating pressure: 0-1.6 MPa Operating temperature：-55℃–125℃
Operating medium: Fuel，RP-1、RP-2、RP-3
Filtrate precision: 1-100μm
Alarm pressure of differential pressure: 0.35±0.05 MPa
Filtrate media: Special stainless steel mesh, Stainless steel fiber felt, Inorganic fibers.

Send email to us

Product Detail

Product Tags

description

The RYL fuel filter unit is installed in the tester and engine test cell fuel oil supply system of aviation system, to filter solid particle and slimes in medium and effectively control cleanliness.

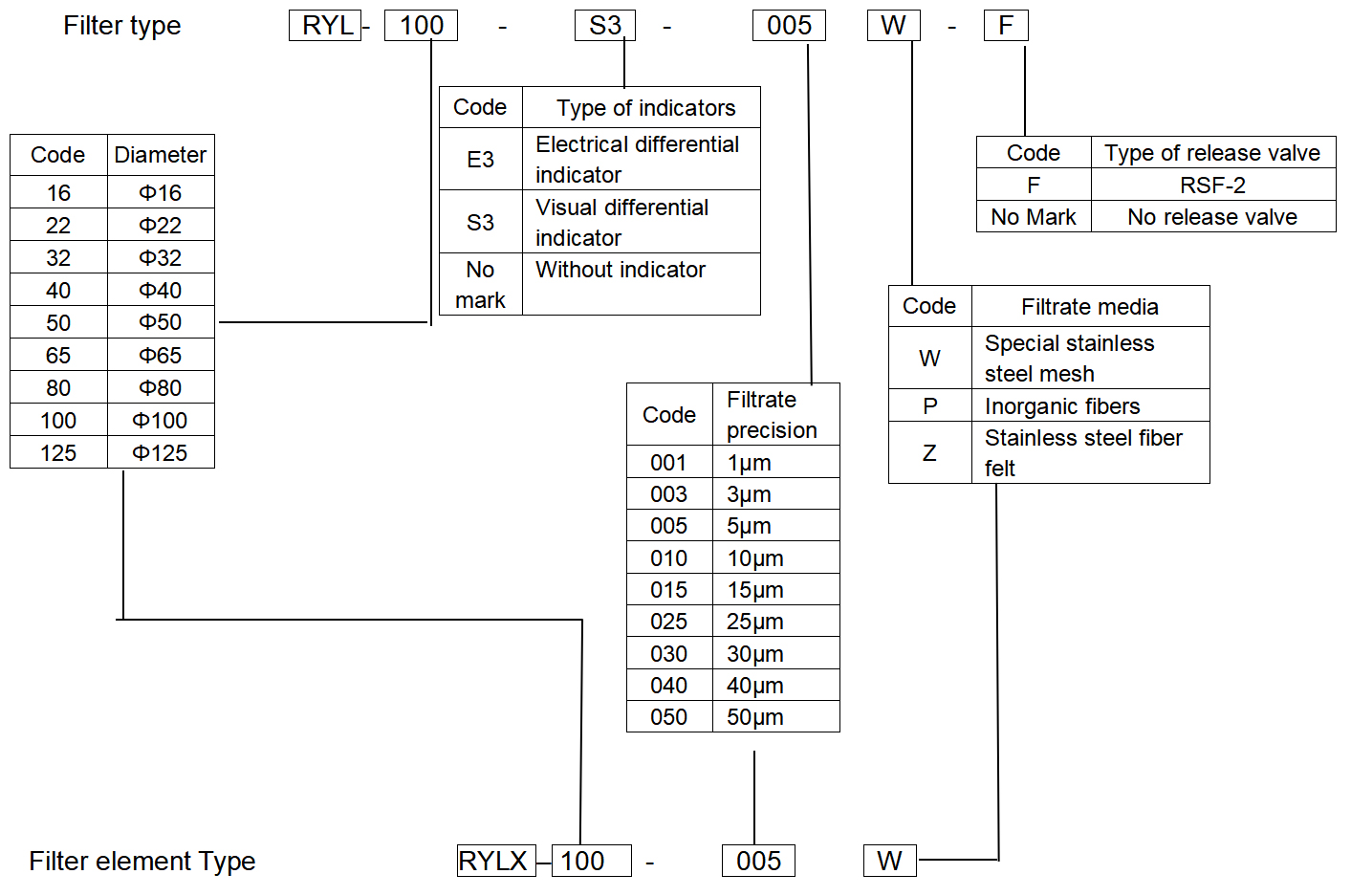

Odering Information

DIMENSIONAL LAYOUT

Type RYL/RYLA	Flow rates L/min	Diameter d	H	H0	L	E	Screw thread：MFlange size A×B×C×D	Structure	Notes
16	100	Φ16	283	252	208	Φ102	M27×1.5	Picture 1	Can be selected from the signal device, bypass valve and release valve according to request
22	150	Φ22	288	257	208	Φ116	M33×2
32	200	Φ30	288	257	208	Φ116	M45×2
40	400	Φ40	342	267	220	Φ116	Φ90×Φ110×Φ150×(4-Φ18)
50	600	Φ50	512	429	234	Φ130	Φ102×Φ125×Φ165×(4-Φ18)	Picture 2
65	800	Φ65	576	484	287	Φ170	Φ118×Φ145×Φ185×(4-Φ18)
80	1200	Φ80	597	487	394	Φ250	Φ138×Φ160×Φ200×(8-Φ18)
100	1800	Φ100	587	477	394	Φ260	Φ158×Φ180×Φ220×(8-Φ18)
125	2300	Φ125	627	487	394	Φ273	Φ188×Φ210×Φ250×(8-Φ18)
