1. System pressure: The hydraulic oil filter should have a certain mechanical strength and not be damaged by hydraulic pressure.
2. Installation position. The hydraulic oil filter should have sufficient flow capacity and be selected based on the filter sample, taking into account the installation position of the filter in the system.
3. Oil temperature, oil viscosity, and filtration accuracy requirements.
4. For hydraulic systems that cannot be shut down, a filter with a switching structure must be selected. The filter element can be replaced without stopping the machine. For situations where the filter element needs to be blocked and an alarm is triggered, a filter with a signaling device can be selected.

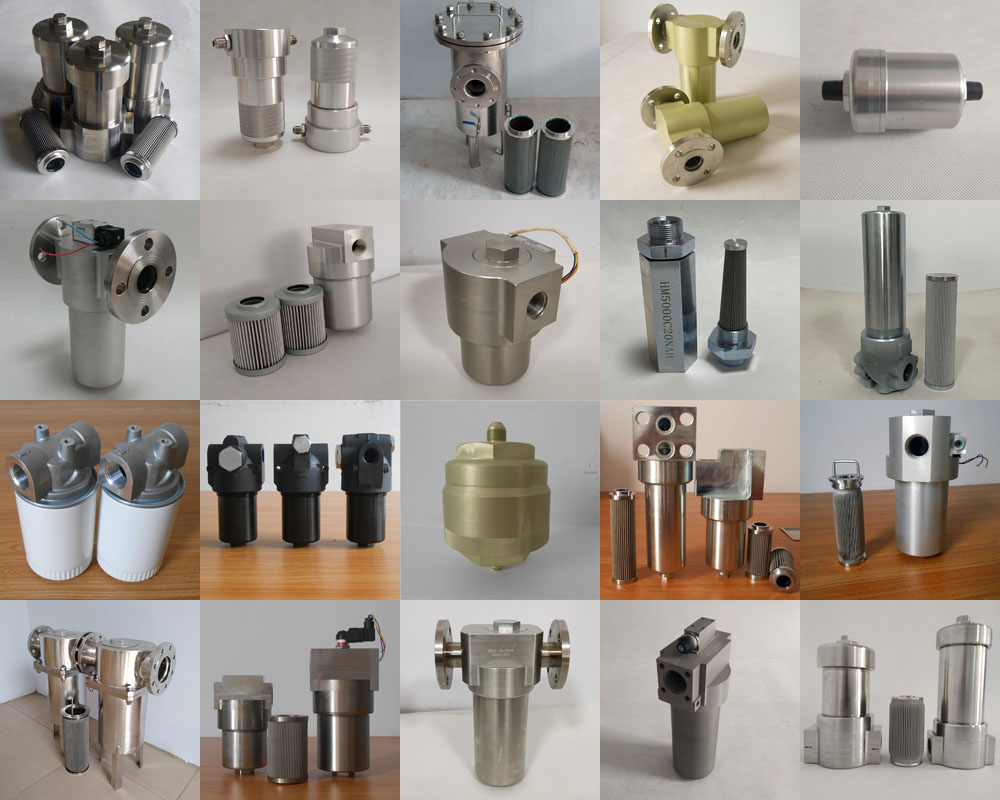

Hydraulic Filter Basic specifications:
Hydraulic filter pressure: 0-420 bar
Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil), ect
Operating temperature:- 25℃~110℃
Clogging indicator and bypass valve can be installed.
Filter Housing material: Carbon steel, stainless steel, aluminum, ect
Filter Element material: Glass fiber, Cellulose paper, stainless steel mesh, stainless steel fiber sinter felt, ect
