Flowrate 240l/min 21 Mpa Fuel Oil Filter FMQ240MD2M6 Hydraulic Pressure Filter Housing

Short Description:

Operating medium: Lubricating oil, hydraulic oil, fuel, phosphate hydraulic oil or gas
Operating pressure (max): 21MPa
Operating temperature: – 25℃~200℃
Indicating pressure drop: 0. 5MPa
By-pass valve unlocking pressure: 0.6MPa

Send email to us

Product Detail

Product Tags

Data Sheet

Model Number	FMQ240MD2M6
FMQ	Working Pressure: 21 Mpa
240	Flow rate:240 L/MIN
MD	10 micron stainless steel wire mesh filter element
2	Seal material: VITON
M6	Connection thread: M39X2

Product Images

Flowrate 240l/min 21 Mpa Fuel Oil Filter FMQ240MD2M6 Hydraulic Pressure Filter Housing

description

The FMQ hydraulic filter housing is installed in the pressure pipeline of the hydraulic system to filter out solid particles and gel like substances in the working medium, effectively controlling the pollution level of the working medium.
Differential pressure transmitter, oil drain valve, and bypass valve can be installed as needed. The filter element is easy to clean and effectively isolates the oil before and after filtration during cleaning
The product is mainly used in aviation manufacturing and repair enterprises for testers and cleaning equipment.
The filtering materials are stainless steel mesh, stainless steel sintered felt, and glass fiber composite filtering material, ect.

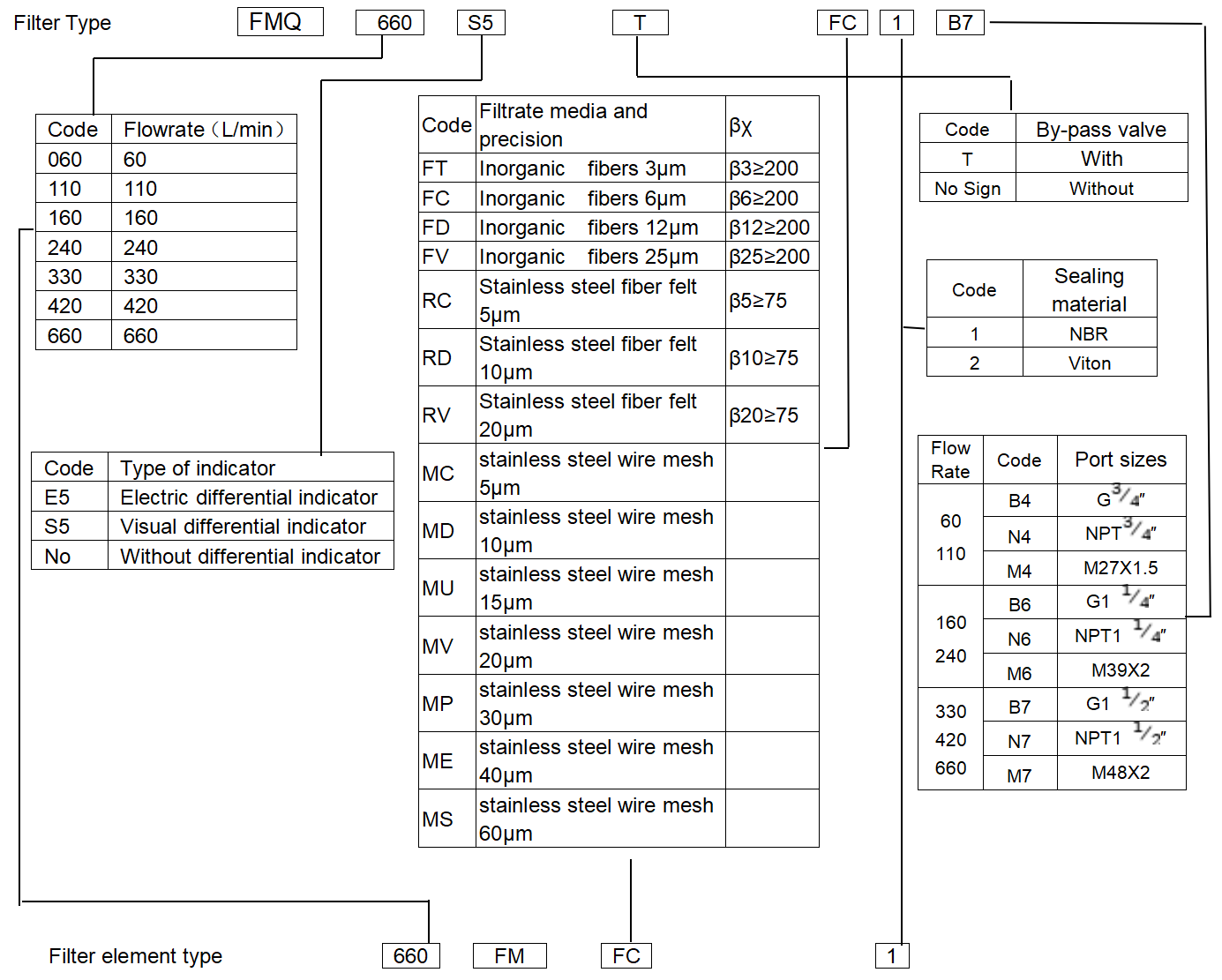

Odering Information

1) CLEANING FILTER ELEMENT COLLAPSE PRESSURE UNDER RATING FLOW RATES（UNIT：1×105 Pa
Medium parameters：30cst 0.86kg/dm3）

Type	Housing	Filter element
Type	Housing	FT	FC	FD	FV	CD	CV	RC	RD	MD	MV
FMQ060…	0.49	0.88	0.68	0.54	0.43	0.51	0.39	0.56	0.48	0.62	0.46
FMQ110…	1.13	0.85	0.69	0.53	0.42	0.50	0.38	0.52	0.49	0.63	0.47
FMQ160…	0.52	0.87	0.68	0.55	0.42	0.50	0.38	0.56	0.48	0.62	0.46
FMQ240…	1.38	0.88	0.68	0.53	0.42	0.50	0.38	0.53	0.50	0.63	0.46
FMQ330…	0.48	0.87	0.70	0.55	0.41	0.50	0.38	0.52	0.49	0.63	0.47
FMQ420…	0.95	0.86	0.70	0.54	0.43	0.51	0.39	0.56	0.48	0.64	0.48
FMQ660…	1.49	0.88	0.72	0.53	0.42	0.50	0.38	0.52	0.49	0.63	0.47

2) DRAWINGS AND DIMENSIONS

Model			d₀	M	E	L	H0	H
FMQ060	E5T E5 S5T S5	FT FC FD FV RC RD RV MC MD MU MV MP ME MS	Φ16	G″ NPT″ M27X1.5	Φ96	130	137	180
FMQ110							207	250
FMQ160			Φ28	G1 ″ NPT1 ″ M39X2	Φ115	160	185	240
FMQ240							245	300
FMQ330			Φ35	G1 ″ NPT1 ″ M48X2	Φ145	185	240	305
FMQ420							320	385
FMQ660							425	490
