6000 psi High Pressure Oil Filter YPH330MD1B7 Hydraulic Filter Housing

Short Description:

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester

Operating pressure (max): 42 MPa (6000 psi)

Operating temperature: – 25℃~110℃

Indicating pressure drop: 0. 7MPa

Send email to us

Product Detail

Product Tags

Data Sheet

Model Number	YPH 330 MD 1 B7
YPH	Working Pressure: 42 Mpa (6000 PSI)
330	Flow rate:330 L/MIN
MD	stainless steel wire mesh filter element 10 micron
1	Seal material: NBR
B7	Connection thread: G1 1/2

description

YPH high pressure filters are installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness.

Filter element adopts many kinds of materials, such as glass fiber, stainless steel wire mesh and stainless steel sintered felt

Filter vessel is made of carbon steel, and has nice looking figure.

Differential pressure clogging indicator can be assembled according to actual requirement.

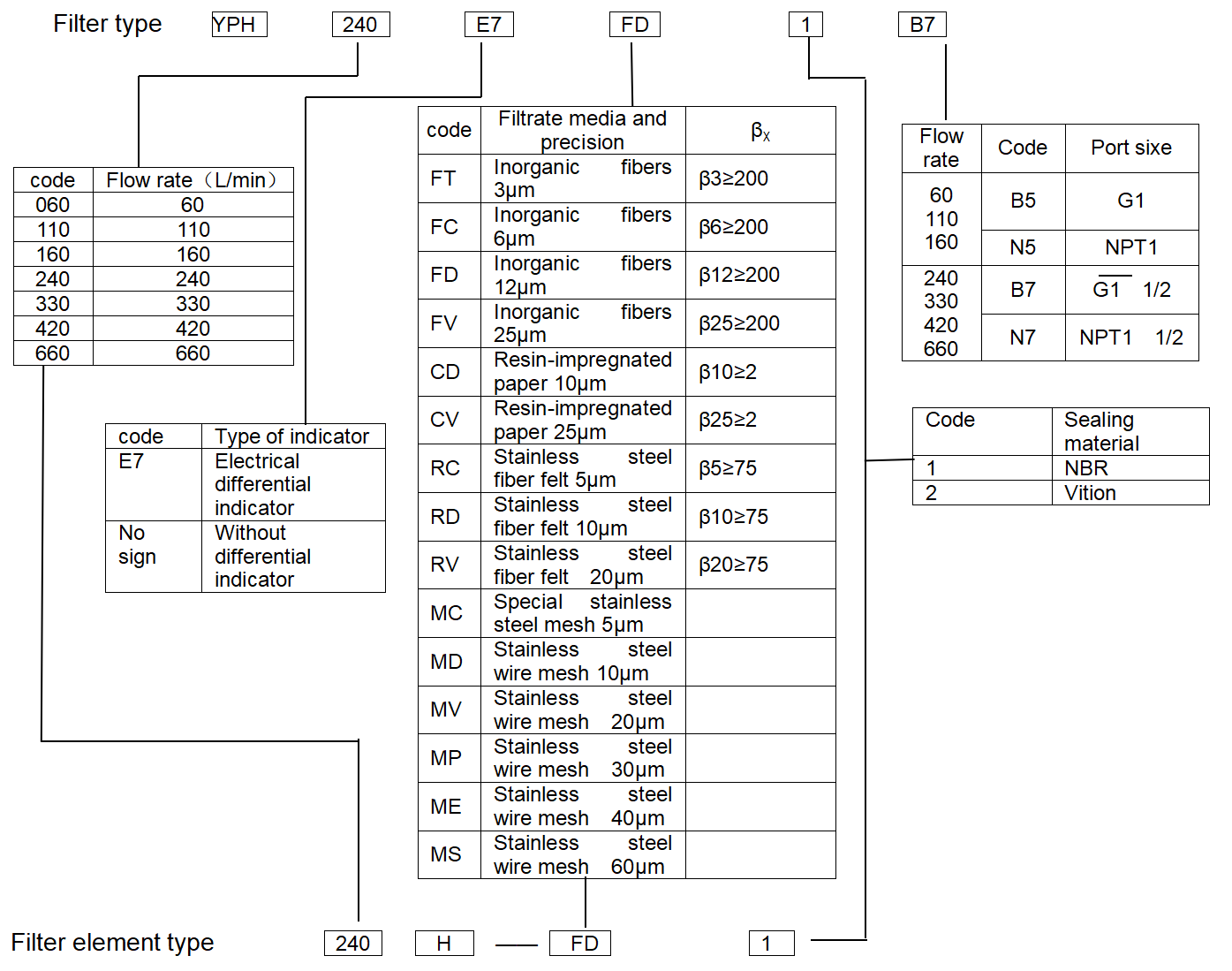

Odering Information

1) 4.CLEANING FILTER ELEMENT COLLAPSE PRESSURE UNDER RATING FLOW RATES
(UNIT：1×105Pa Medium parameters：30cst 0.86kg/dm3)

Type	Housing	Filter element
		FT	FC	FD	FV	CD	CV	RC	RD	MD	MV
YPH060…	0.38	0.92	0.67	0.48	0.38	0.51	0.39	0.51	0.46	0.63	0.47
YPH110…	0.95	0.89	0.67	0.50	0.37	0.50	0.38	0.55	0.50	0.62	0.46
YPH160…	1.52	0.83	0.69	0.50	0.37	0.50.	0.38	0.54	0.49	0.63	0.47
YPH240…	0.36	0.86	0.65	0.49	0.37	0.50	0.38	0.48	0.45	0.61	0.45
YPH330…	0.58	0.86	0.65	0.49	0.36	0.49	0.39	0.49	0.45	0.61	0.45
YPH420…	1.05	0.82	0.66	0.49	0.38	0.49	0.38	0.48	0.48	0.63	0.47
YPH660…	1.56	0.85	0.65	0.48	0.38	0.50	0.39	0.49	0.48	0.63	0.47

2) DRAWINGS AND DIMENSIONS

Type	A	H	H1	H2	L	L1	L2	B	G	Weight(kg)
YPH060…	G1 NPT1	284	211	169	120	60	60	M12	100	4.7
YPH110…		320	247	205						5.8
YPH160…		380	307	265						7.9
YPH240…	G1″ NPT1″	338	265	215	138	85	64	M14		16.3
YPH330…		398	325	275						19.8
YPH420…		468	395	345						23.9
YPH660…		548	475	425						28.6
