Data Sheet
| Model Number | PMA 110 MD 0 0 2 M5 |
| PMA | Working Pressure: 11 Mpa |
| 110 | Flow rate:110 L/MIN |
| MD | 10 micron stainless steel wire mesh filter element |
| 0 | Without bypass valve |
| 0 | Without clogging indicator |
| 2 | Seal material: VITON |
| M5 | Connection thread: M33X2 |
description
PMA series hydraulic pressure line filter housings are installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness.
Differential pressure indicator and by-pass valve can be assembled according to actual requirement.
Filter element adopts many kinds of materials, such as glass fiber, stainless steel sinter felt, stainless steel wire mesh.
Filter vessel is cast in aluminum and has small volume, small weight, compact construction and nice looking figure.

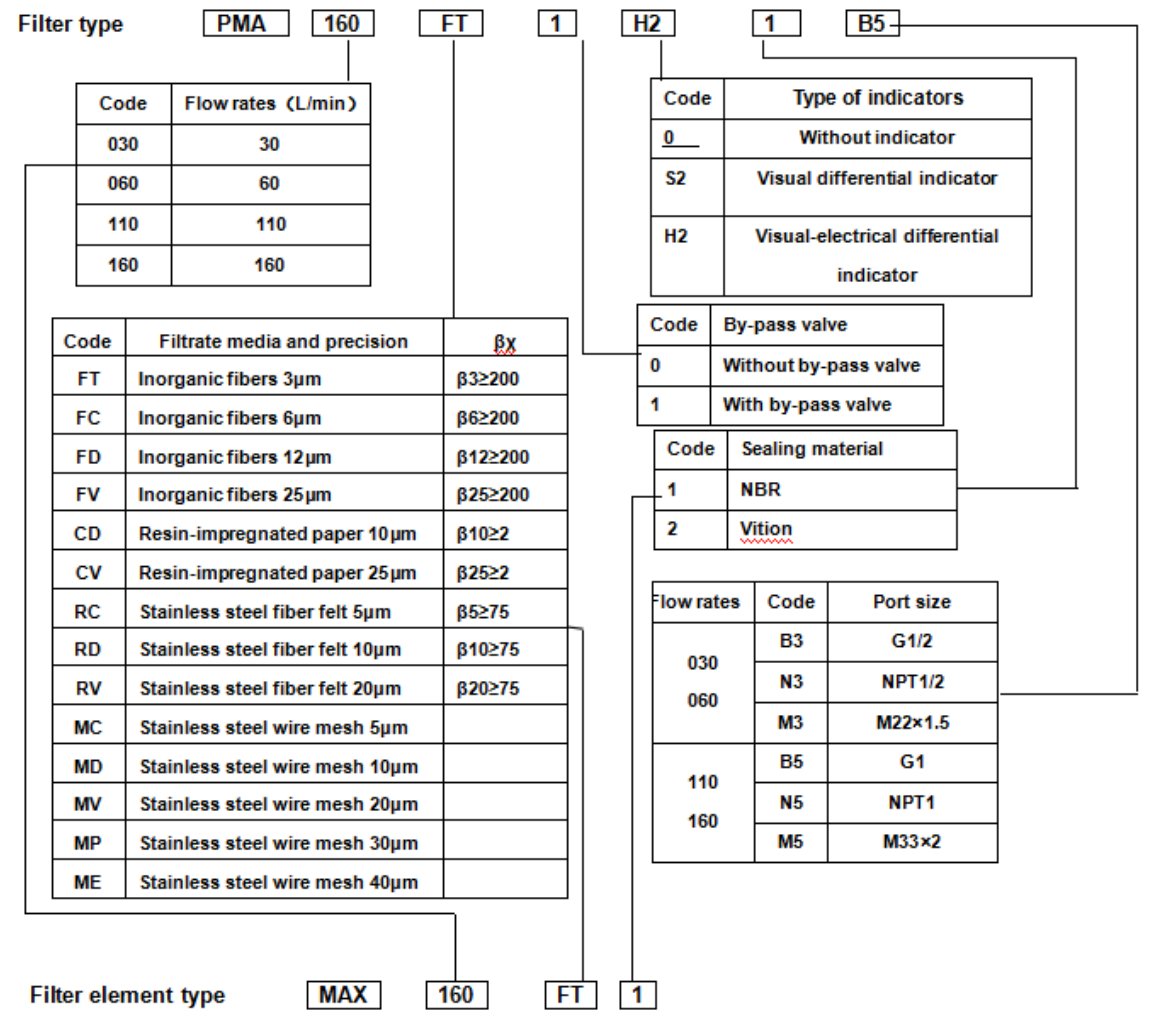

Odering Information
4) CLEANING FILTER ELEMENT COLLAPSE PRESSURE UNDER RATING FLOW RATES（Unit：1×105Pa
Medium parameters：30cst 0.86kg/dm3）
| Type | Housing | Filter element | |||||||||
| FT | FC | FD | FV | CD | CV | RC | RD | MD | MV | ||
| PMA030… | 0.28 | 0.85 | 0.67 | 0.56 | 0.41 | 0.51 | 0.38 | 0.53 | 0.48 | 0.66 | 0.49 |
| PMA060… | 0.73 | 0.84 | 0.66 | 0.56 | 0.42 | 0.52 | 0.39 | 0.52 | 0.47 | 0.65 | 0.48 |
| PMA110… | 0.31 | 0.85 | 0.67 | 0.57 | 0.42 | 0.52 | 0.39 | 0.52 | 0.48 | 0.66 | 0.49 |
| PMA160… | 0.64 | 0.84 | 0.66 | 0.56 | 0.42 | 0.52 | 0.39 | 0.53 | 0.48 | 0.65 | 0.48 |
2) DIMENSIONAL LAYOUT
| Type | A | H | H1 | H2 | L | L1 | L2 | B | C | Weight（Kg） |
| PMA030… |
G1/2 NPT1/2 M22.5X1.5 |
157 | 133 | 129 | 76 | 64 | 17 | Φ6.5 | 60 | 0.65 |
| PMA060… | 244 | 133 | 216 | 0.85 | ||||||
| PMA110… |
G1 NPT1 M33X2 |
242 | 140 | 184 | 115 | 95 | 25 | Φ8.5 | 1.1 | |
| PMA160… | 298 | 140 | 240 | 1.3 |
